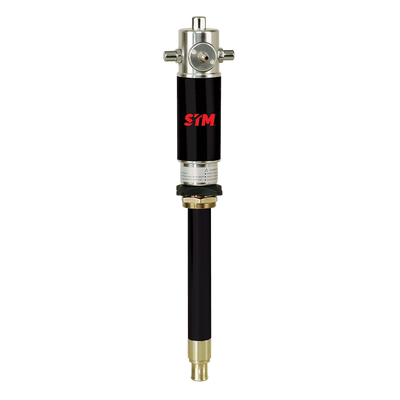

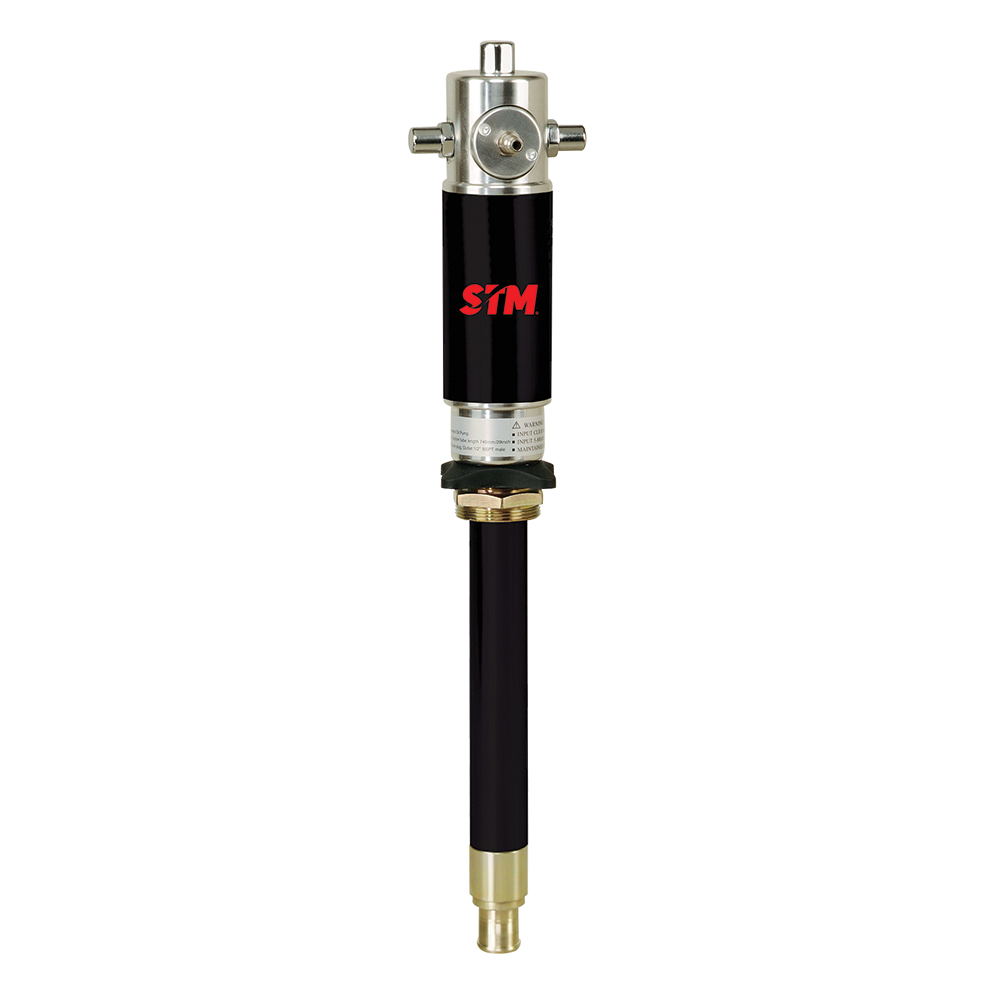

Pneumatic 5:1 Air Operated Oil Pump - Sub Series

DITI1701051

$809.71
$0.00 $809.71
Sale SOLD OUT
Inclusive of all taxes.

In stock
This 5:1 ratio air operated stub pump is designed for reliability and performance, making it the ideal choice for larger instalations where long pipe runs and hose reels are required. The compact "stub" design allows for mounting directly into tanks, drums or onto walls via a mounting bracket and the reliable double acting piston pump design .... Read more
  • Fast & Reliable Shipping
  • Trusted Since 1952
  • Quality Guaranteed
  • Safe & Secure Payment

Exclusive Offers

  • Welcome Offer

    Get 5% off your first order

    Copy code: WELCOME5

  • Clearance Sale

    Explore All Sale Products

    Sale Collection

  • Extra 5% Off

    Sign Up for Exclusive Offers

    Sign Up

View full details

Product Info

Multi-Outlet Power: Medium-pressure 5:1 ratio generates ample line pressure to push oil through workshop piping networks to multiple dispensing bays simultaneously.
Smooth Fluid Flow: Specialized internal differential air motor delivers a consistent, reliable stream with minimal line pulsation.
Extended Service Life: Engineered with a simplified internal structure using fewer moving components to dramatically lower wear rates and maintenance downtime.
Versatile Integration: The short "stub" length profile makes it perfectly suited for wall-mounting brackets, tank-top installations, or remote piping setups.
Secure Drum Adaptation: Supplied with an adjustable 2" bung adapter to lock the pump body tightly into place.

Typical fluids handled include motor oil, synthetic oil, hydraulic oil, ATF and coolant
Suitable for oil up to 240 SAE

Specifications:

Pressure Ratio: 5:1 pneumatic configuration
Pump Series Type: Stub Series (Short-length pump body for wall or remote tank installation)
Working pressure: 70-115psi
Air consumption: @115 psi 4.5 CFM
Max flow rate: 14 LPM
Suction tube diameter: 42mm
Suction tube length: 270mm
Air inlet connection: 1/4" BSP Female
Air outlet connection: 1/2" BSP Male
