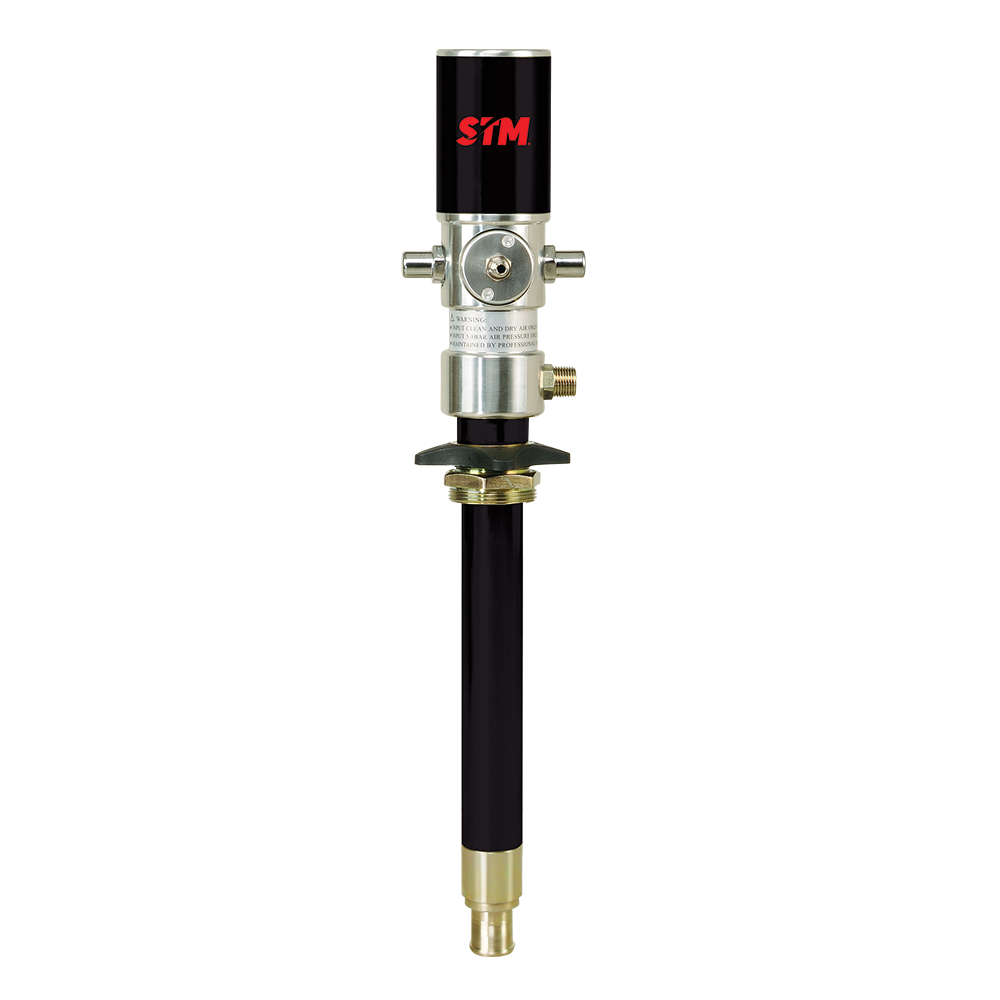

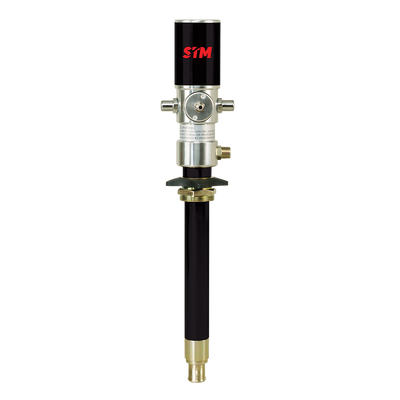

3:1 Air Operated Oil Pump - Stub Series (12 LPM)

DITI1701031

$809.71
$0.00 $809.71
Sale SOLD OUT
Inclusive of all taxes.

In stock
This 3:1 ratio air operated stub pump is designed for reliability and performance, making it the ideal choice for larger instalations where long pipe runs and hose reels are required. The compact "stub" design allows for mounting directly into tanks, drums or onto walls via a mounting bracket and the reliable double acting piston pump design .... Read more
  • Fast & Reliable Shipping
  • Trusted Since 1952
  • Quality Guaranteed
  • Safe & Secure Payment

Exclusive Offers

  • Welcome Offer

    Get 5% off your first order

    Copy code: WELCOME5

  • Clearance Sale

    Explore All Sale Products

    Sale Collection

  • Extra 5% Off

    Sign Up for Exclusive Offers

    Sign Up

View full details

Product Info

Features & Benefits:

• Ideal for Hose Reel Systems: Generates the extra pressure needed to push fluids smoothly through medium-sized workshop hose reels.
• Pulse-Free Fluid Delivery: Outfitted with a specialized differential air motor that ensures a steady, smooth fluid flow without line pulsing.
• Low Maintenance Wear: Smart internal layout uses fewer moving components, reducing pump wear and extending overall tool life.
• Included Hardware: Adjustable 2" drum bung adaptor

Typical fluids handled include motor oil, synthetic oil, hydraulic oil, ATF and coolant
Suitable for oil up to 150 SAE

Specifications:

• Pressure Ratio: 3:1
• Maximum Flow Rate: 12 Litres per minute (LPM)
• Working Air Pressure: 70 – 115 psi
• Air Consumption Rate: 3.6 CFM at 115 psi
• Suction Tube Dimensions: 42mm diameter x 270mm length
• Connection Thread Sizes: 1/4" BSP Female air inlet / 1/2" BSP Male oil outlet

Downloads

Instruction Manual
